Diamond Plate Switchboard Mat

Availability: In stock

*Starting from: $8.65 *Price may update with selected options above.

* Required Fields

*Starting from: $8.65 *Price may update with selected options above.

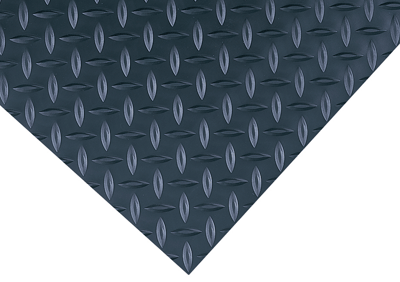

Diamond-Plate Switchboard is the newest version of high-performance non-conductive matting. Designed to protect personnel in areas with dangerous high-voltage equipment, it can insulate against as much as 30,000 volts of electricity. Its unique diamond-embossed surface is easily cleaned and will not collect contaminants.

  • Diamond-Plate Switchboard matting conforms to ANSI/ASTM D-178-01 Type 2, Class II.
  • Overall Thickness: 1/4”
  • Dielectric Strength: 30,000 volts.
  • Recommended Max Usage per ASTM D178-01: up to 17,000 volts
  • Optional caution yellow border available!
  • Skid and slip-resistant diamond plate surface reduces accidents with added traction.

WARNING: This product can expose you to chemicals including di (2-ethylhexyl) phthalate and diisononyl phthalate, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Available in: Anti-Static Mats | Need help? (877) 333-1018
Pricing Options
Standard Sizes Thickness Qty. 1 Qty. 2+
2' x 3' 1/4" $48.67 $47.70
2' x 5' 1/4" $81.12 $79.50
2' x 10' 1/4" $176 $172.48
3' x 4' 1/4" $83.52 $81.85
3' x 5' 1/4" $104.40 $102.31
3' x 10' 1/4" $208.80 $204.62
4' x 6' 1/4" $240.76 $235.94
4' x 8' 1/4" $321.02 $314.60
4' x 10' 1/4" $401.28 $393.25
2' x 75' 1/4" $1271 $1245.58
3' x 75' 1/4" $1658 $1624.84
4' x 75' 1/4" $3120 $3057.6

Custom Width Custom Length Thickness Custom Price
2' Up to 75' 1/4" $9.90/sq ft
3' Up to 75' 1/4" $8.50/sq ft
3' with Yellow Edge Up to 75' 1/4" $8.65/sq ft
4' Up to 75' 1/4" $11.99/sq ft
Color Palette & Patterns

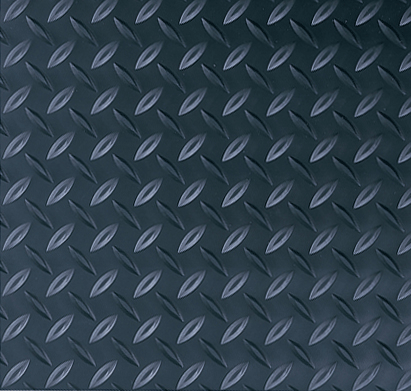

Black
Black
